Field workbook 01 · personal named-user licence
A link budget should survive review, not just return a number.
I built this workbook for the moment when a clean spreadsheet meets a messy field observation. It keeps the power reference, bandwidth, losses, margins and evidence boundary visible on the same job.
See the field edition at €9.99- 17
- working pages
- 52
- interactive fields
- 8
- automatic calculations
- 13
- verified calculation checks
01 / The review problem
The arithmetic is rarely the hardest part.
A budget can look complete while hiding the one assumption that makes its result impossible to defend: carrier power used as reference-signal power, carrier bandwidth used as every receiver bandwidth, or a margin copied from an older project without provenance.
My working rule is simple. If the signal, reference bandwidth or power reference is missing, I report the gap before I report the margin.
- Name the channel. LTE RSRP, NR SSB, PDSCH, PUSCH and PUCCH are not interchangeable accounting objects.
- Freeze the assumptions. Every gain, feeder loss, penetration loss and margin remains visible.
- Calculate deterministically. EIRP, thermal noise, sensitivity, MAPL and remaining margin follow the declared contract.

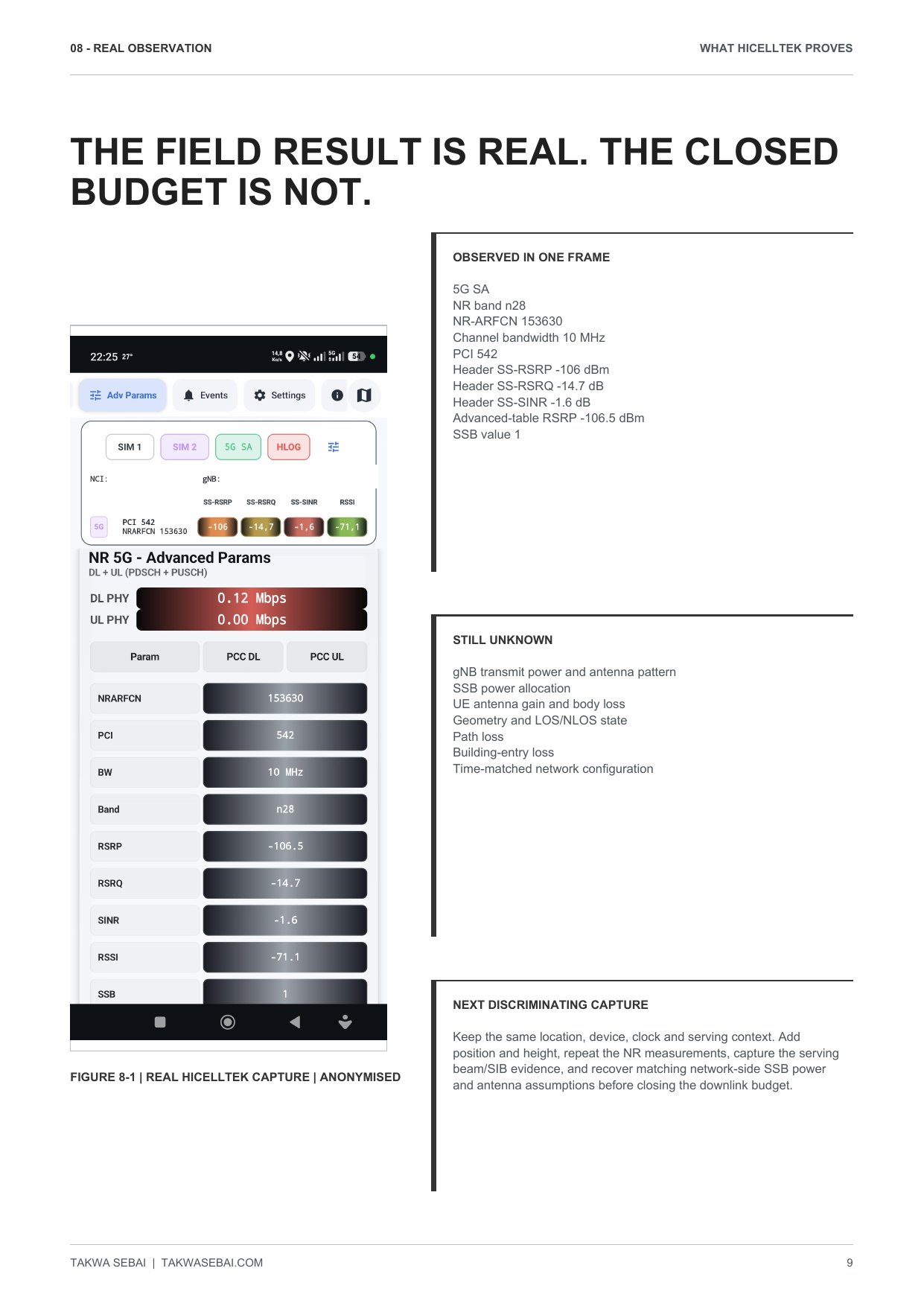

- Compare without overclaiming. A HiCellTek frame can challenge an assumption. It cannot invent missing network-side evidence.
02 / Inside the file

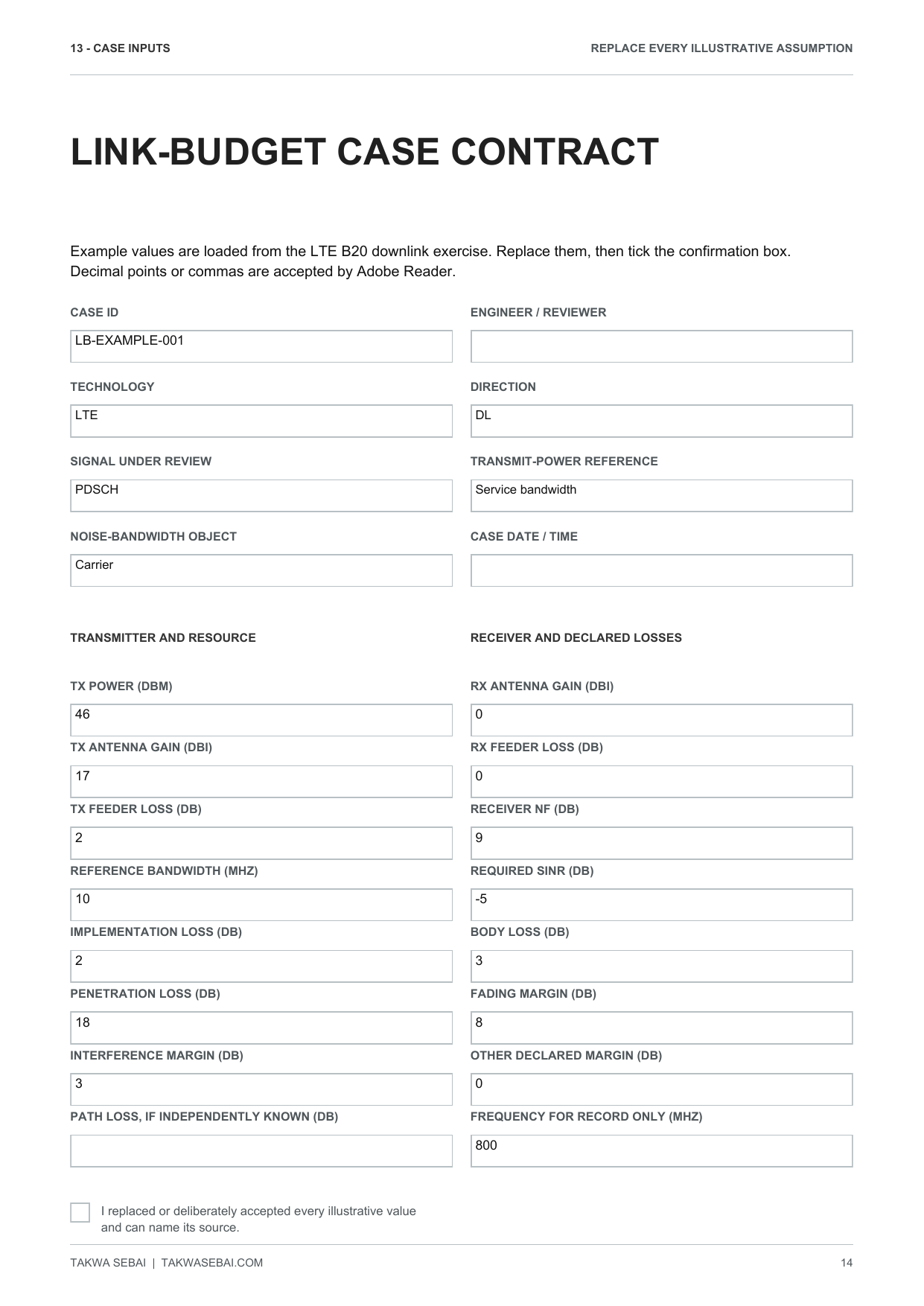

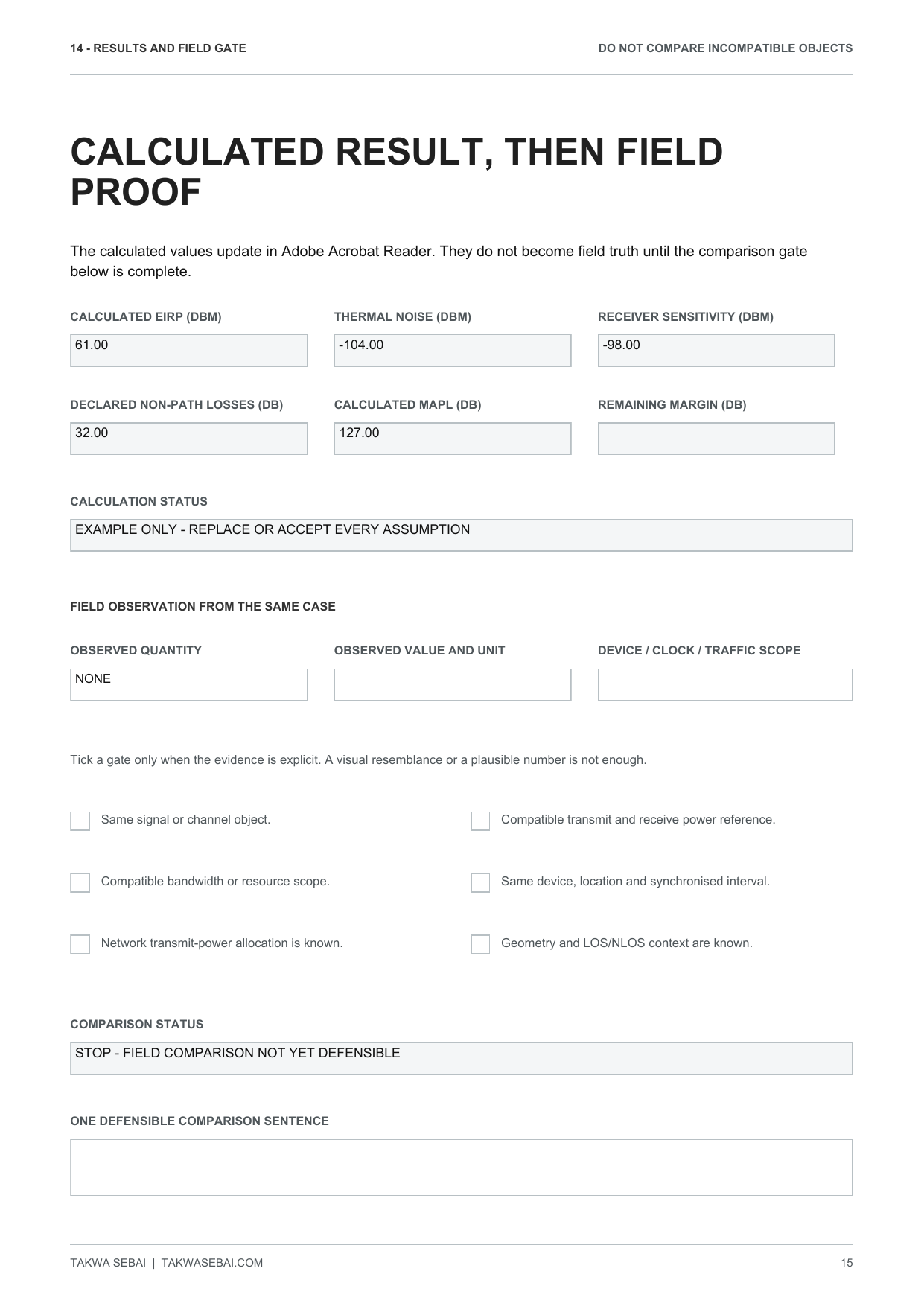

The pages engineers actually work with.
03 / What is delivered
One compact PDF, built for repeated engineering use.
| File | Interactive PDF, version 1.0.0 |
|---|---|
| Coverage | LTE and NR downlink/uplink link-budget review, MAPL and field comparison |
| Worked material | Declared examples, equations, audit register, calculation ledger and handoff pages |
| Supported live calculation | Current desktop Adobe Acrobat Reader |
| Licence | Personal, one named buyer. Reuse across authorised investigations. |
| Integrity | SHA-256 verified before every private download |
It is not a propagation tool, a vendor planning suite, a calibrated drive-test report or a promise of root cause. MAPL is not presented as a cell radius.
04 / Personal field edition
€9.99 once. The file stays in your private library.
Payment is handled by Stripe. After signed payment confirmation, the purchase email receives a one-time link to the HiCellTek customer library.
Redistribution, resale, sublicensing, public upload and sharing the private download link are prohibited. Copyright © 2026 Takwa Sebai.
